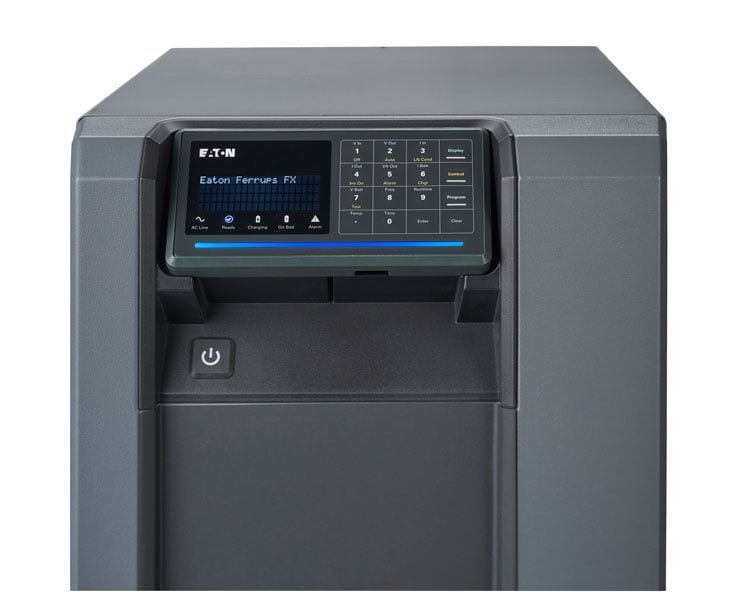

eaton ferrups fx model ups

Delivers proven, ferroresonant battery backup power and scalable runtimes for 911 centers, global military installations, and marine vessels.

eaton ferrups fx model Ups

Formerly Powerware FERRUPS Tower UPS

The EATON FERRUPS new FX Model delivers proven, ferroresonant battery backup power and scalable runtimes for 911 centers, global military installations, marine vessels and other critical applications. Highly configurable with a wide range of voltages, frequencies, runtimes, power cords and receptacles, the Eaton FERRUPS continually regulates voltage and eliminates harmful harmonic currents.

EATON FERRUPS Features

Features and Benefits
- Delivers bulletproof protection with Ferroresonant technology.
- Converts power from almost any AC source into computer-grade power.
- Prolongs backup time with external battery cabinets.
- Conditions incoming power without depleting the battery to preserve battery power for complete power outages.
- Adapts to virtually any application with customizable receptacles, input plugs, voltage-matching transformers and bypass switches.
- Ensures data integrity with free Software Suite bundle including LanSafe software and FORESEER network monitoring software.

Power Rating: 500 VA to 18KVA

Voltage: 120/208/240

Frequency: 60Hz

Configuration: Tower

Product Series: Powerware

General:

Models: 850VA / 1.4kVA / 3.1kVA / 5.3kVA

Capacity (kVA/kW):.85/.6, 1.4/1, 3.1/2.2, 5.3/3.7

Dimensions (inches): 12x10x21.25 / 15.1×15.2×20.2 / 21.2×15.25×22.9 / 29.5×15.5×25

HxWxD (mm): 305x255x540 / 385x390x515 / 540x390x585 / 36.5x19x32

Typical (Full Load): 11/ 14/ 14/ 20

Runtime (Half Load)(minutes): 28/ 37/ 35/ 50

Operation:

Nominal Input Voltage: 102/ 208/ 240

Input Voltage Range: +15%, -20%

Operating Frequency: 60 Hz Nominal (adjustable limits +_ 0.01 Hz to +_ 3Hz)

Output Voltage Regulation: ± 3% for input voltages of +15% to -20%

Output Voltage Waveform: Sine wave

Output Voltage THD: 5% or less at rated kW load

Overload Capacity: 150% surge and 125% for10 min. on line, 150% surge and 110% for 10 minutes on inverter

Transfer Time: 0 ms

Lightning, Surge & Noise Protection: 2000:1 spike attenuation using ANSI/IEEE C62.41 and C62.45 Category A and Category B tests. Common Mode – >120 dB. Normal Mode – >60dB

Efficiency: 85/ 88/ 91/ 90

Safety Certification: UL, CSA (cUL), Complies with European Low Voltage Directive 73/23/EEC

EMI Compliance: FCC Class A, Complies with European Electromagnetic Compatibility Directve 89/336/EEC

Testing Standards: ANSI/EEE C62.41 (1991); ANSI/EEE C62.45 (2002); EN62040-2

Communication: RS-232 serial port (DB-25), plus contact closures

Environmental:

Operating Temperature: 0 to 40° C

Storage: -20° C to +60° C

Relative Humidity: 0 to 95% without condensation

Audible Noise at 1m: 47 / 49 / 51 / 51

Altitude: 3,050m (10,000 ft.) maximum

Due to continuous product improvements, program specifications are subject to change without notice.
